The benefits of modularity

Discover the world’s first modular lidar

With the multitude of possible projects with a drone-mounted lidar, it is certainly difficult to choose the right sensor! With Connectiv, no need to choose! Get only the modules you need! All modules can be purchased individually (cameras, IMU and lasers) and used with the Connectiv computer module depending on the evolving reality of your projects.

Lidar

Riegl VUX-120

  • Company

    Riegl

  • Wavelength

    near infrared

  • Laser Classification

    Class 1

  • Field of view (FOV)

    100 degrees along track

    10 degrees forward / nadir / 10 degrees backward

  • Precision

    5 mm

  • Echos (returns)

    up to 32

  • Maximum scan range

    720 m

  • Shots per second

    Up to 2 400 000 pulse / second

Riegl miniVUX-1

  • Company

    Riegl

  • Wavelength

    905 nm

  • Laser Classification

    Class 1

  • Field of view (FOV)

    0 degrees along track / 360 degrees across track

  • Precision

    1 cm

  • Echos (returns)

    5

  • Maximum scan range

    330 m

  • Shots per second

    Up to 100 000 pulse / second

Riegl miniVUX-3

  • Company

    Riegl

  • Wavelength

    905 nm

  • Laser Classification

    Class 1

  • Field of view (FOV)

    0 degrees along track / 360 degrees across track

  • Precision

    1 cm

  • Echos (returns)

    5

  • Maximum scan range

    330 m

  • Shots per second

    Up to 300 000 pulse / second

Hesai Pandar XT32-M2X

  • Company

    Hesai

  • Wavelength

    905 nm

  • Laser Classification

    Class 1

  • Field of view (FOV)

    40.3 degrees along track / 360 degrees across track

  • Precision

    3 cm

  • Echos (returns)

    3

  • Maximum scan range

    300 m

  • Shots per second

    640 000 pulse / second

Hesai Pandar XT32

  • Company

    Hesai

  • Wavelength

    905 nm

  • Laser Classification

    Class 1

  • Field of view (FOV)

    31 degrees along track / 360 degrees across track

  • Precision

    3 cm

  • Echos (returns)

    2

  • Maximum scan range

    300 m

  • Shots per second

    640 000 pulse / second

INS

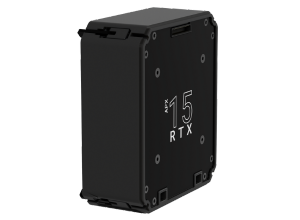

Applanix APX-15

  • Position (m)

    0.02 – 0.05

  • Velocity (m/s)

    0.015

  • Roll & Pitch (deg)

    0.025

  • True Heading* (deg)

    0.08

*Typical survey mission profile, max RMS error. Heading error will increase for low speed rotor applications and when hovering.

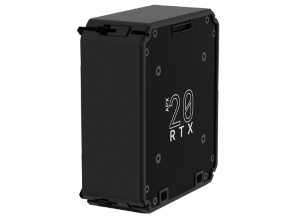

Applanix APX-20

  • Position (m)

    0.02 – 0.05

  • Velocity (m/s)

    0.010

  • Roll & Pitch (deg)

    0.015

  • True Heading* (deg)

    0.035

*Typical survey mission profile, max RMS error. Heading error will increase for low speed rotor applications and when hovering.

Cameras

ADTI 24 mpx

  • Field of view (FOV)

    With 16 mm lens : 72.5°

  • Weight

    122 g

  • Size of the sensor

    7.7 x 6.2 x 3.8 cm

  • Number of pixels

    24.3 mpx

Sony ILX-LR1

  • Field of view (FOV)

    With 24 mm lens : 73.3°

  • Weight

    243 g

  • Size of the sensor

    100 × 74 × 42,5 mm

  • Number of pixels

    61 mp

Multispectral – 5 bands

  • Field of view (FOV)

    49.6° horizontal

    38.3° vertical

  • Weight

    315 g

  • Size of the sensor

    86.8 x 63 x 67.35 mm

  • Wavelength

    Five multispectral bands at 1.6 MP each

    • Blue (475 nm center, 32 nm bandwidth)
    • Green (560 nm center, 27 nm bandwidth)
    • Red (668 nm center, 14 nm bandwidth)
    • Near infrared (842 nm center, 57 nm bandwidth)

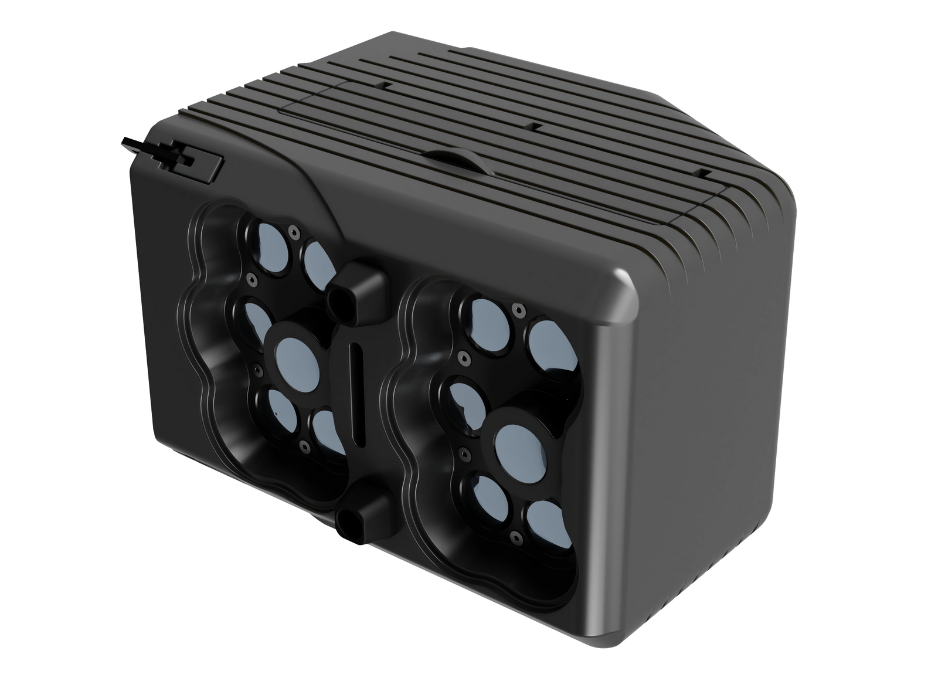

Dual Multispectral – 10 bands

  • Field of view (FOV)

    50° horizontal

    38° vertical

  • Weight

    745 g

  • Size of the sensor

    132 × 88 × 96.7 mm

  • Wavelength

    Ten multispectral bands at 1.6 MP each

    • Coastal Blue (444 nm center, 28 nm bandwidth)
    • Blue (475 nm center, 32 nm bandwidth)
    • Green 1 (531 nm center, 14 nm bandwidth)
    • Green 2 (560 nm center, 27 nm bandwidth)
    • Red 1 (650 nm center, 16 nm bandwidth)
    • Red 2 (668 nm center, 14 nm bandwidth)
    • Red Edge 1 (705 nm center, 10 nm bandwidth)
    • Red Edge 2 (717 nm center, 12 nm bandwidth)
    • Near Infrared 1 (740 nm center, 18 nm bandwidth)
    • Near Infrared 2 (842 nm center, 57 nm bandwidth)
Choose a Connectiv configuration! Configurations
